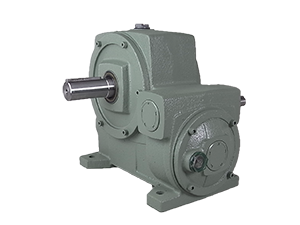

LE (蝸桿2段)1/100~1/2500
因為是無電機型，所以有輸入軸轉速可以任意選擇的便利性。 這是一種沒有故障，可以在任何地方廣泛使用的形式。 型號、制動器尺寸、減速比多，可根據用途選擇。 因為使用了最適合蝸桿的潤滑油，所以效率也變得更好了。
全國服務熱線：0512-6605 1469
在線咨詢
| 製品記號 | 中心距離 | 減速比 | 入力回転數 | 入力 | 出力トルク | 製品重量 | 油量 |
| (製品記號について) | (min??) | (kW) | (N?m) | (kg) | (?) | ||
| LE0-100 | 55 | 100 | 1800 | 0.39 | 118.00 | 10 | 0.4 |
| 1500 | 0.32 | 118.00 | |||||
| LE0-150 | 55 | 150 | 1800 | 0.32 | 118.00 | 10 | 0.4 |
| 1500 | 0.27 | 118.00 | |||||
| LE0-200 | 55 | 200 | 1800 | 0.25 | 118.00 | 10 | 0.4 |
| 1500 | 0.22 | 118.00 | |||||
| LE0-250 | 55 | 250 | 1800 | 0.22 | 118.00 | 10 | 0.4 |
| 1500 | 0.18 | 118.00 | |||||
| LE0-300 | 55 | 300 | 1800 | 0.18(0.18) | 118(93) | 10 | 0.4 |
| 1500 | 0.16(0.16) | 118(98) | |||||
| LE0-400 | 55 | 400 | 1800 | 0.16(0.17) | 118(112) | 10 | 0.4 |
| 1500 | 0.13(0.16) | 118(116) | |||||
| LE0-500 | 55 | 500 | 1800 | 0.14(0.13) | 118(93) | 10 | 0.4 |
| 1500 | 0.12(0.12) | 118(99) | |||||
| LE0-600 | 55 | 600 | 1800 | 0.12(0.097) | 118(70) | 10 | 0.4 |
| 1500 | 0.11(0.090) | 118(74) | |||||
| LE0-800 | 55 | 800 | 1800 | (0.11) | (118.00) | 10 | 0.4 |
| 1500 | (0.10) | (118.00) | |||||
| LE0-900 | 55 | 900 | 1800 | (0.11) | (118.00) | 10 | 0.4 |
| 1500 | (0.10) | (118.00) | |||||
| LE0-1000 | 55 | 1000 | 1800 | (0.10) | (118.00) | 10 | 0.4 |
| 1500 | (0.09) | (118.00) | |||||
| LE0-1200 | 55 | 1200 | 1800 | (0.09) | (127.00) | 10 | 0.4 |
| 1500 | (0.07) | (127.00) | |||||
| LE0-1500 | 55 | 1500 | 1800 | (0.09) | (127.00) | 10 | 0.4 |
| 1500 | (0.07) | (127.00) | |||||
| LE0-1600 | 55 | 1600 | 1800 | (0.09) | (127.00) | 10 | 0.4 |
| 1500 | (0.08) | (127.00) | |||||
| LE0-2000 | 55 | 2000 | 1800 | (0.08) | (127.00) | 10 | 0.4 |
| 1500 | (0.07) | (127.00) | |||||
| LE0-2500 | 55 | 2500 | 1800 | (0.06) | (118.00) | 10 | 0.4 |
| 1500 | (0.05) | (118.00) | |||||
| LE1-100 | 76 | 100 | 1800 | 0.69 | 235.00 | 18 | 0.9 |
| 1500 | 0.59 | 235.00 | |||||
| LE1-150 | 76 | 150 | 1800 | 0.51 | 235.00 | 18 | 0.9 |
| 1500 | 0.43 | 235.00 | |||||
| LE1-200 | 76 | 200 | 1800 | 0.42 | 235.00 | 18 | 0.9 |
| 1500 | 0.36 | 235.00 | |||||
| LE1-250 | 76 | 250 | 1800 | 0.32 | 235.00 | 18 | 0.9 |
| 1500 | 0.28 | 235.00 | |||||
| LE1-300 | 76 | 300 | 1800 | 0.30(0.36) | 235(204) | 18 | 0.9 |
| 1500 | 0.25(0.32) | 235(213) | |||||
| LE1-400 | 76 | 400 | 1800 | 0.24(0.30) | 235(213) | 18 | 0.9 |
| 1500 | 0.20(0.27) | 235(222) | |||||
| LE1-500 | 76 | 500 | 1800 | 0.19(0.27) | 235(235) | 18 | 0.9 |
| 1500 | 0.17(0.23) | 235(235) | |||||
| LE1-600 | 76 | 600 | 1800 | 0.19(0.25) | 235(235) | 18 | 0.9 |
| 1500 | 0.17(0.21) | 235(235) | |||||
| LE1-800 | 76 | 800 | 1800 | 0.16(0.21) | 235(235) | 18 | 0.9 |
| 1500 | 0.14(0.20) | 245(245) | |||||
| LE1-900 | 76 | 900 | 1800 | 0.14(0.19) | 235(235) | 18 | 0.9 |
| 1500 | 0.13(0.17) | 245(245) | |||||
| LE1-1000 | 76 | 1000 | 1800 | 0.13(0.17) | 235(235) | 18 | 0.9 |
| 1500 | 0.12(0.15) | 245(245) | |||||
| LE1-1200 | 76 | 1200 | 1800 | 0.13(0.16) | 245(245) | 18 | 0.9 |
| 1500 | 0.11(0.15) | 255(255) | |||||
| LE1-1500 | 76 | 1500 | 1800 | 0.11(0.14) | 245(245) | 18 | 0.9 |
| 1500 | 0.096(0.13) | 255(255) | |||||
| LE1-1600 | 76 | 1600 | 1800 | 0.12(0.16) | 274(267) | 18 | 0.9 |
| 1500 | 0.11(0.15) | 274(274) | |||||
| LE1-2000 | 76 | 2000 | 1800 | 0.11(0.14) | 284(282) | 18 | 0.9 |
| 1500 | 0.092(0.13) | 284(284) | |||||
| LE1-2500 | 76 | 2500 | 1800 | 0.092(0.12) | 294(294) | 18 | 0.9 |
| 1500 | 0.080(0.11) | 294(294) | |||||
| LE2-100 | 100 | 100 | 1800 | 1.40 | 490.00 | 41 | 1.8 |
| 1500 | 1.30 | 519.00 | |||||
| LE2-150 | 100 | 150 | 1800 | 1.00 | 490.00 | 41 | 1.8 |
| 1500 | 0.92 | 519.00 | |||||
| LE2-200 | 100 | 200 | 1800 | 0.82 | 490.00 | 41 | 1.8 |
| 1500 | 0.74 | 519.00 | |||||
| LE2-250 | 100 | 250 | 1800 | 0.67 | 490.00 | 41 | 1.8 |
| 1500 | 0.60 | 519.00 | |||||
| LE2-300 | 100 | 300 | 1800 | 0.58(0.78) | 470(470) | 41 | 1.8 |
| 1500 | 0.53(0.71) | 490(490) | |||||
| LE2-400 | 100 | 400 | 1800 | 0.55(0.70) | 568(529) | 41 | 1.8 |
| 1500 | 0.50(0.63) | 588(548) | |||||
| LE2-500 | 100 | 500 | 1800 | 0.47(0.60) | 588(588) | 41 | 1.8 |
| 1500 | 0.40(0.53) | 588(588) | |||||
| LE2-600 | 100 | 600 | 1800 | 0.43(0.50) | 588(588) | 41 | 1.8 |
| 1500 | 0.38(0.45) | 588(588) | |||||
| LE2-800 | 100 | 800 | 1800 | 0.37(0.49) | 588(588) | 41 | 1.8 |
| 1500 | 0.34(0.42) | 588(588) | |||||
| LE2-900 | 100 | 900 | 1800 | 0.35(0.39) | 588(588) | 41 | 1.8 |
| 1500 | 0.31(0.34) | 588(588) | |||||
| LE2-1000 | 100 | 1000 | 1800 | 0.31(0.35) | 588(588) | 41 | 1.8 |
| 1500 | 0.29(0.31) | 588(588) | |||||
| LE2-1200 | 100 | 1200 | 1800 | 0.31(0.34) | 588(588) | 41 | 1.8 |
| 1500 | 0.25(0.30) | 588(588) | |||||
| LE2-1500 | 100 | 1500 | 1800 | 0.26(0.33) | 588(588) | 41 | 1.8 |
| 1500 | 0.22(0.29) | 588(588) | |||||
| LE2-1600 | 100 | 1600 | 1800 | 0.25(0.32) | 588(588) | 41 | 1.8 |
| 1500 | 0.22(0.28) | 588(588) | |||||
| LE2-2000 | 100 | 2000 | 1800 | 0.22(0.25) | 588(588) | 41 | 1.8 |
| 1500 | 0.18(0.22) | 588(588) | |||||
| LE2-2500 | 100 | 2500 | 1800 | 0.18(0.22) | 588(588) | 41 | 1.8 |
| 1500 | 0.16(0.19) | 588(588) | |||||
| LE3-100 | 115 | 100 | 1800 | 2.40 | 823.00 | 63 | 2.5 |
| 1500 | 2.00 | 823.00 | |||||
| LE3-150 | 115 | 150 | 1800 | 1.70 | 823.00 | 63 | 2.5 |
| 1500 | 1.40 | 823.00 | |||||
| LE3-200 | 115 | 200 | 1800 | 1.30 | 823.00 | 63 | 2.5 |
| 1500 | 1.10 | 823.00 | |||||
| LE3-250 | 115 | 250 | 1800 | 1.20 | 823.00 | 63 | 2.5 |
| 1500 | 1.00 | 823.00 | |||||
| LE3-300 | 115 | 300 | 1800 | 0.97 | 823.00 | 63 | 2.5 |
| 1500 | 0.83 | 823.00 | |||||
| LE3-400 | 115 | 400 | 1800 | 0.80(0.83) | 823(603) | 63 | 2.5 |
| 1500 | 0.72(0.76) | 823(627) | |||||
| LE3-500 | 115 | 500 | 1800 | 0.67(0.76) | 823(689) | 63 | 2.5 |
| 1500 | 0.61(0.68) | 872(716) | |||||
| LE3-600 | 115 | 600 | 1800 | 0.63(0.72) | 833(833) | 63 | 2.5 |
| 1500 | 0.58(0.66) | 882(882) | |||||
| LE3-800 | 115 | 800 | 1800 | 0.50(0.60) | 833(693) | 63 | 2.5 |
| 1500 | 0.48(0.54) | 882(720) | |||||
| LE3-900 | 115 | 900 | 1800 | 0.50(0.61) | 941(941) | 63 | 2.5 |
| 1500 | 0.50(0.53) | 941(941) | |||||
| LE3-1000 | 115 | 1000 | 1800 | 0.50(0.53) | 941(787) | 63 | 2.5 |
| 1500 | 0.43(0.47) | 941(813) | |||||
| LE3-1200 | 115 | 1200 | 1800 | 0.43(0.52) | 941(749) | 63 | 2.5 |
| 1500 | 0.37(0.47) | 941(766) | |||||
| LE3-1500 | 115 | 1500 | 1800 | (0.43) | (941.00) | 63 | 2.5 |
| 1500 | (0.37) | (941.00) | |||||
| LE3-1600 | 115 | 1600 | 1800 | 0.36(0.45) | 941(780) | 63 | 2.5 |
| 1500 | 0.32(0.41) | 941(798) | |||||
| LE3-2000 | 115 | 2000 | 1800 | (0.35) | (941.00) | 63 | 2.5 |
| 1500 | (0.31) | (941.00) | |||||
| LE3-2500 | 115 | 2500 | 1800 | (0.34) | (941.00) | 63 | 2.5 |
| 1500 | (0.30) | (941.00) | |||||
| LE4-100 | 123 | 100 | 1800 | 2.80 | 941.00 | 70 | 3.6 |
| 1500 | 2.40 | 980.00 | |||||
| LE4-150 | 123 | 150 | 1800 | 2.00 | 941.00 | 70 | 3.6 |
| 1500 | 1.70 | 980.00 | |||||
| LE4-200 | 123 | 200 | 1800 | 1.50 | 941.00 | 70 | 3.6 |
| 1500 | 1.40 | 980.00 | |||||
| LE4-250 | 123 | 250 | 1800 | 1.40 | 941.00 | 70 | 3.6 |
| 1500 | 1.20 | 980.00 | |||||
| LE4-300 | 123 | 300 | 1800 | 1.10 | 941.00 | 70 | 3.6 |
| 1500 | 0.98 | 980.00 | |||||
| LE4-400 | 123 | 400 | 1800 | 0.86(1.1) | 941(941) | 70 | 3.6 |
| 1500 | 0.78(0.98) | 980(980) | |||||
| LE4-500 | 123 | 500 | 1800 | 0.74(0.89) | 941(941) | 70 | 3.6 |
| 1500 | 0.68(0.81) | 980(980) | |||||
| LE4-600 | 123 | 600 | 1800 | 0.71(0.78) | 980(850) | 70 | 3.6 |
| 1500 | 0.65(0.70) | 1078(881) | |||||
| LE4-800 | 123 | 800 | 1800 | 0.56(0.74) | 980(980) | 70 | 3.6 |
| 1500 | 0.53(0.71) | 1078(1078) | |||||
| LE4-900 | 123 | 900 | 1800 | 0.62(0.65) | 1078(928) | 70 | 3.6 |
| 1500 | 0.58(0.58) | 1176(953) | |||||
| LE4-1000 | 123 | 1000 | 1800 | 0.53(0.67) | 1078(1078) | 70 | 3.6 |
| 1500 | 0.47(0.59) | 1078(1078) | |||||
| LE4-1200 | 123 | 1200 | 1800 | 0.54(0.71) | 1176(1176) | 70 | 3.6 |
| 1500 | 0.44(0.61) | 1176(1176) | |||||
| LE4-1500 | 123 | 1500 | 1800 | (0.53) | (1176.00) | 70 | 3.6 |
| 1500 | (0.43) | (1176.00) | |||||
| LE4-1600 | 123 | 1600 | 1800 | 0.42(0.65) | 1176(1176) | 70 | 3.6 |
| 1500 | 0.36(0.57) | 1176(1176) | |||||
| LE4-2000 | 123 | 2000 | 1800 | (0.42) | (1176.00) | 70 | 3.6 |
| 1500 | (0.37) | (1176.00) | |||||
| LE4-2500 | 123 | 2500 | 1800 | (0.40) | (1176.00) | 70 | 3.6 |
| 1500 | (0.34) | (1176.00) | |||||
| LE5-100 | 148 | 100 | 1800 | 4.60 | 1666.00 | 111 | 4.8 |
| 1500 | 3.90 | 1666.00 | |||||
| LE5-150 | 148 | 150 | 1800 | 3.30 | 1666.00 | 111 | 4.8 |
| 1500 | 2.80 | 1666.00 | |||||
| LE5-200 | 148 | 200 | 1800 | 2.60 | 1666.00 | 111 | 4.8 |
| 1500 | 2.10 | 1666.00 | |||||
| LE5-250 | 148 | 250 | 1800 | 2.60 | 1666.00 | 111 | 4.8 |
| 1500 | 2.00 | 1666.00 | |||||
| LE5-300 | 148 | 300 | 1800 | 1.90 | 1764.00 | 111 | 4.8 |
| 1500 | 1.70 | 1764.00 | |||||
| LE5-400 | 148 | 400 | 1800 | 1.6(2.0) | 1764(1758) | 111 | 4.8 |
| 1500 | 1.4(1.9) | 1862(1838) | |||||
| LE5-500 | 148 | 500 | 1800 | 1.3(1.5) | 1862(1484) | 111 | 4.8 |
| 1500 | 1.2(1.4) | 1960(1555) | |||||
| LE5-600 | 148 | 600 | 1800 | 1.2(1.4) | 1862(1522) | 111 | 4.8 |
| 1500 | 1.1(1.3) | 1960(1639) | |||||
| LE5-800 | 148 | 800 | 1800 | 1.0(1.3) | 1862(1862) | 111 | 4.8 |
| 1500 | 0.97(1.2) | 1960(1960) | |||||
| LE5-900 | 148 | 900 | 1800 | 1.0(1.3) | 1960(1850) | 111 | 4.8 |
| 1500 | 0.89(1.2) | 1960(1917) | |||||
| LE5-1000 | 148 | 1000 | 1800 | 0.92(1.0) | 1960(1704) | 111 | 4.8 |
| 1500 | 0.80(0.93) | 1960(1764) | |||||
| LE5-1200 | 148 | 1200 | 1800 | 0.83(1.1) | 1960(1715) | 111 | 4.8 |
| 1500 | 0.67(0.99) | 1960(1768) | |||||
| LE5-1500 | 148 | 1500 | 1800 | 0.72(0.90) | 1960(1829) | 111 | 4.8 |
| 1500 | 0.61(0.82) | 1960(1884) | |||||
| LE5-1600 | 148 | 1600 | 1800 | 0.70(1.0) | 1960(1960) | 111 | 4.8 |
| 1500 | 0.61(0.88) | 1960(1960) | |||||
| LE5-2000 | 148 | 2000 | 1800 | 0.62(0.76) | 1960(1908) | 111 | 4.8 |
| 1500 | 0.53(0.68) | 1960(1960) | |||||
| LE5-2500 | 148 | 2500 | 1800 | (0.52) | (1960.00) | 111 | 4.8 |
| 1500 | (0.43) | (1960.00) | |||||
| LE6-150 | 175 | 150 | 1800 | 6.00 | 2940.00 | 172 | 7 |
| 1500 | 5.30 | 3038.00 | |||||
| LE6-200 | 175 | 200 | 1800 | 4.60 | 2940.00 | 172 | 7 |
| 1500 | 4.10 | 3038.00 | |||||
| LE6-250 | 175 | 250 | 1800 | 3.70 | 2940.00 | 172 | 7 |
| 1500 | 3.40 | 3038.00 | |||||
| LE6-300 | 175 | 300 | 1800 | 3.20 | 2940.00 | 172 | 7 |
| 1500 | 2.90 | 3038.00 | |||||
| LE6-400 | 175 | 400 | 1800 | 2.60 | 3038.00 | 172 | 7 |
| 1500 | 2.50 | 3332.00 | |||||
| LE6-500 | 175 | 500 | 1800 | 2.4(2.7) | 3332(2925) | 172 | 7 |
| 1500 | 2.0(2.5) | 3430(3151) | |||||
| LE6-600 | 175 | 600 | 1800 | 2.2(2.3) | 3136(3107) | 172 | 7 |
| 1500 | 2.0(2.2) | 3332(3315) | |||||
| LE6-800 | 175 | 800 | 1800 | 1.80 | 3332.00 | 172 | 7 |
| 1500 | 1.70 | 3430.00 | |||||
| LE6-900 | 175 | 900 | 1800 | 1.9(1.9) | 3430(3382) | 172 | 7 |
| 1500 | 1.7(1.7) | 3528(3457) | |||||
| LE6-1000 | 175 | 1000 | 1800 | 1.6(1.8) | 3430(3396) | 172 | 7 |
| 1500 | 1.4(1.6) | 3528(3486) | |||||
| LE6-1200 | 175 | 1200 | 1800 | 1.7(1.6) | 3626(3486) | 172 | 7 |
| 1500 | 1.4(1.4) | 3724(3550) | |||||
| LE6-1500 | 175 | 1500 | 1800 | 1.4(1.5) | 3724(3172) | 172 | 7 |
| 1500 | 1.3(1.3) | 3920(3267) | |||||
| LE6-1600 | 175 | 1600 | 1800 | 1.30 | 3724.00 | 172 | 7 |
| 1500 | 1.20 | 3920.00 | |||||
| LE6-2000 | 175 | 2000 | 1800 | 1.2(1.2) | 3920(3280) | 172 | 7 |
| 1500 | 1.1(1.1) | 4018(3351) | |||||
| LE6-2500 | 175 | 2500 | 1800 | 1.0(1.1) | 3430(3022) | 172 | 7 |
| 1500 | 0.89(0.94) | 3430(3111) | |||||
| LE7-150 | 210 | 150 | 1800 | 9.80 | 4704.00 | 286 | 12 |
| 1500 | 8.70 | 4802.00 | |||||
| LE7-200 | 210 | 200 | 1800 | 7.60 | 4704.00 | 286 | 12 |
| 1500 | 6.70 | 4802.00 | |||||
| LE7-250 | 210 | 250 | 1800 | 6.00 | 4704.00 | 286 | 12 |
| 1500 | 5.30 | 4802.00 | |||||
| LE7-300 | 210 | 300 | 1800 | 5.00 | 4704.00 | 286 | 12 |
| 1500 | 4.60 | 4802.00 | |||||
| LE7-400 | 210 | 400 | 1800 | 4.20 | 4704.00 | 286 | 12 |
| 1500 | 3.70 | 4802.00 | |||||
| LE7-500 | 210 | 500 | 1800 | 3.5(3.4) | 4704(3748) | 286 | 12 |
| 1500 | 3.0(3.1) | 4802(3893) | |||||
| LE7-600 | 210 | 600 | 1800 | 3.6(3.8) | 4802(4802) | 286 | 12 |
| 1500 | 3.4(3.5) | 5096(5096) | |||||
| LE7-800 | 210 | 800 | 1800 | 2.80 | 4802.00 | 286 | 12 |
| 1500 | 2.60 | 4900.00 | |||||
| LE7-900 | 210 | 900 | 1800 | 3.1(2.9) | 5292(4823) | 286 | 12 |
| 1500 | 2.9(2.6) | 5488(4981) | |||||
| LE7-1000 | 210 | 1000 | 1800 | 2.4(2.3) | 4900(4252) | 286 | 12 |
| 1500 | 2.3(2.1) | 5194(4456) | |||||
| LE7-1200 | 210 | 1200 | 1800 | 2.6(2.7) | 5684(5188) | 286 | 12 |
| 1500 | 2.3(2.5) | 6370(5344) | |||||
| LE7-1500 | 210 | 1500 | 1800 | 2.4(2.0) | 5978(4609) | 286 | 12 |
| 1500 | 2.2(1.8) | 6076(4754) | |||||
| LE7-1600 | 210 | 1600 | 1800 | 2.20 | 5488.00 | 286 | 12 |
| 1500 | 1.70 | 5782.00 | |||||
| LE7-2000 | 210 | 2000 | 1800 | 1.9(1.7) | 5782(4851) | 286 | 12 |
| 1500 | 1.7(1.5) | 5978(4959) | |||||
| LE7-2500 | 210 | 2500 | 1800 | (1.40) | (5096.00) | 286 | 12 |
| 1500 | (1.30) | (5194.00) |
微信二維碼
官網二維碼
